Refrigerants R134a
Refrigerants R134a
Refrigerants R134a
Refrigerants R134a
Refrigerants R134a
Refrigerants
R134a
Specifications99.9% MIN.
Grade StandardIndustrial   Grade

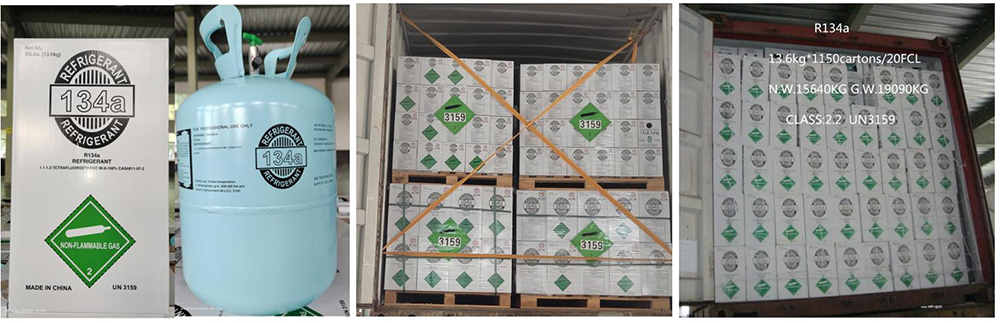

Transport Package13.6kg   disposable steel cylinder, outer carton boxes
H.S.CODE2903399046
Min. Order1000cylinders
Port of LoadingNingbo or   Shanghai, China
Trade MarkGM COOL
OriginZhejiang,   Jiangsu
CertificateDOT-39,KGS,   REACH, CE
Production Capacity300,000pcs per   year
IMO UN NUMBER3159/2.2


R134A refrigerant

R134a is an HFC refrigerant replacement for R-12. It is the global standard for new mobile air conditioning and can also be used to retrofit existing R-12 mobile air conditioning systems. It is also used in new medium- and high-temperature stationary commercial refrigeration, as well as chiller systems and home appliances. In addition, it can be used to retrofit existing R-12 refrigeration and air conditioning systems.

It is also used as cleaning agents, foam blowing agents and propellant.

Replaces
R-12


Applications
Mobile air conditioning systems
Retrofit of existing R-12 mobile air conditioning systems
Medium- and high-temperature:
stationary commercial refrigeration
chiller equipment
home appliances
Retrofit existing R-12 refrigeration and air conditioning equipment
Benefits
Global standard for mobile air conditioning. Broadly used in commercial and stationary applications.


Physical properties:

ComponentChemical nameMolecular formulaWeight%
HFC-134a1,1,1,2-Tetrafluoroethane   CH2-F-CF2100
Molecular weight   102.03
Boiling point   -25.9 ℃
Critical temperature   101.06℃
Critical pressure   4059kPa
Odor   Slight ethereal
Form   Liquefied gas
Color   Clear, colorless
Heat of vaporization at boiling point   216.98KJ/kg
Vapor Pressure at 25 ℃   665kPa
Vapor Density at 25 ℃ (Air = 1)   5.26
Liquid Density at 25 ℃   1.207g/cm3
Ozone Depletion Potential(ODP)   0
Global Warming Potential(GWP) 100yr   1300
ASHARE Safety Group Classification   A1/A1
Flammability at 1 atm. and 18 ℃   Non-flammable


Lubricant Recommendation
PAG for Mobile AC
POE for stationary/commercial applications

Packing:
Tinplate can : 280gram/can; 340gram/can; 500gram/can; 800gram/can; 1kg/can
Non-refillable steel cylinders: 1L(1kg)/cylinder; 15lb(6.8kg)/cylinder; 30lb(13.6kg)/cylinder; 50lb (22.7kg)/cylinder;

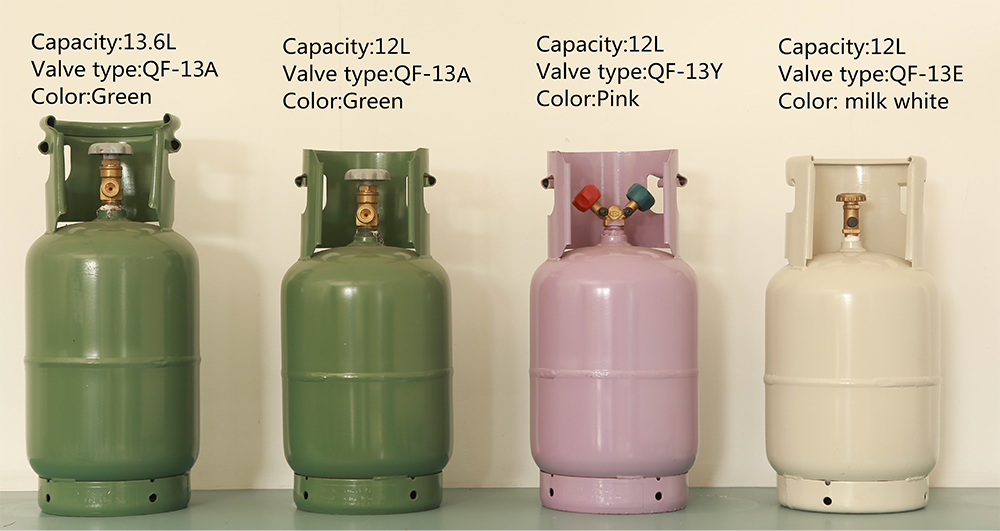

Refillable steel cylinders (EN13322-1): 12.4kg/cylinder; 14.3kg/cylinder

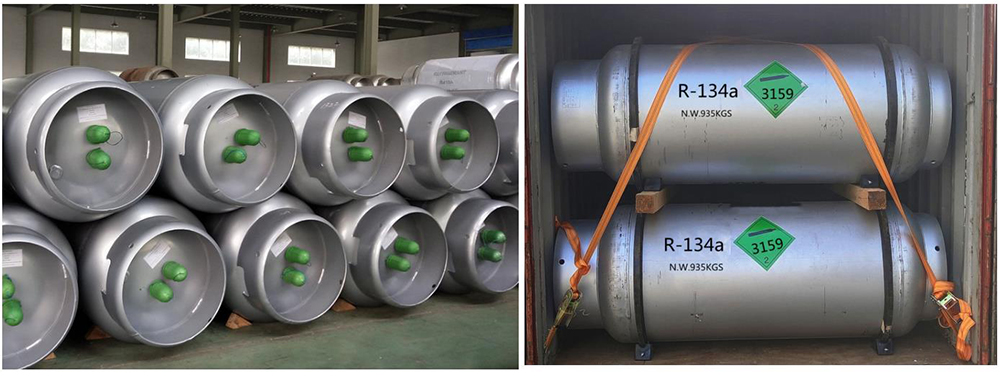

Refillable steel cylinder: 50L(50KG), 60L(60KG); 100L(100KG),926L(950kgs)/ cylinder;
Iso tank container: 18-24MT/iso tank
