Refrigerants R410A
Refrigerants R410A
Refrigerants R410A
Refrigerants R410A
Refrigerants R410A
Refrigerants
R410A
Specifications99.9% MIN.
Grade StandardIndustrial   Grade
Transport Package11.3kg   disposable steel cylinder, outer carton boxes
H.S.CODE3824780010
Min. Order800cylinders
Port of LoadingNingbo or   Shanghai, China
Trade MarkGM COOL
OriginZhejiang,   Jiangsu
CertificateDOT-39, KGS,   REACH, CE
Production Capacity300,000pcs per   year
IMO UN NUMBER3163/2.2


R410A refrigerant

R410A is the leading long term and non-ODP HFC refrigerant for replacing R-22 in positive displacement residential and light commercial air-conditioning and heat pump systems. It has higher cooling capacity and significantly higher pressure than R-22 and an intrinsically low toxicity. Because it behaves like an azeotrope, it is easy to service in the field. And R410A should be used only in systems specifically designed for R-410A.

Replaces
R-22


Applications
New residential and commercial air conditioning and heat pumps.
Positive displacement chillers.



Benefits
R410A has shown in tests to have 5-6% higher Energy Efficiency Rating(EER) than R22. R410A also has a higher capacity and pressure than R22, enabling the design of smaller, more compact air-conditioning equipment.

Physical properties:

ComponentChemical nameMolecular formulaWeight%
R410ATrifluoromethane 100
Molecular weight   72.6
Boiling point   -52.7 ℃
Critical temperature   72.5℃
Critical pressure   4950kPa
Odor   Slight ethereal
Form   Liquefied gas
Color   Clear, colorless
Heat of vaporization at boiling point   256.68KJ/kg
Vapor Pressure at 25 ℃   1649kPa
Vapor Density at 25 ℃ (Air = 1)   4.19
Liquid Density at 25 ℃   1.063g/cm3
Ozone Depletion Potential(ODP)   0
Global Warming Potential(GWP) 100yr   2000
ASHARE Safety Group Classification   A1/A1
Flammability at 1 atm. and 18 ℃   Non-flammable


Lubricant Recommendation
POE

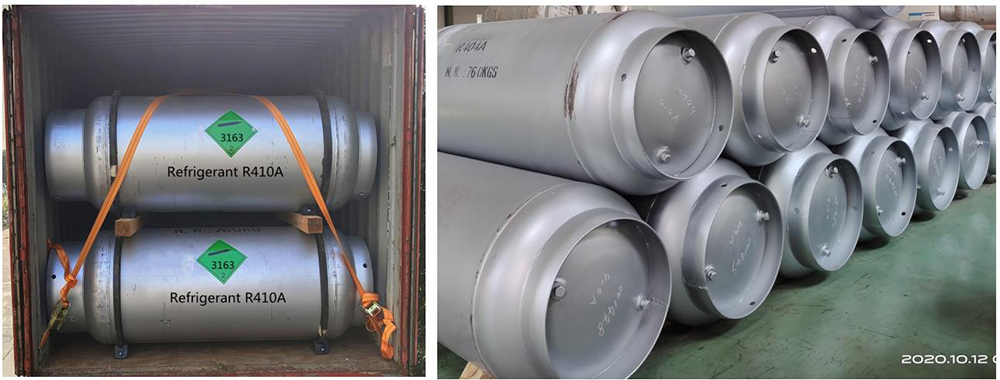

Packing:

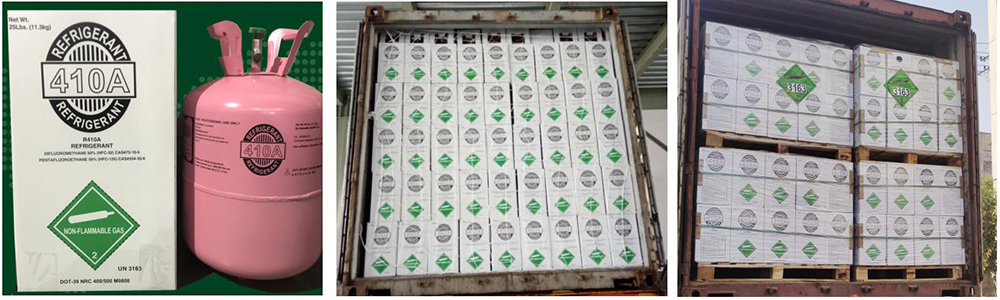

Disposable steel cylinder 25lb(11.3kg)/cylinder

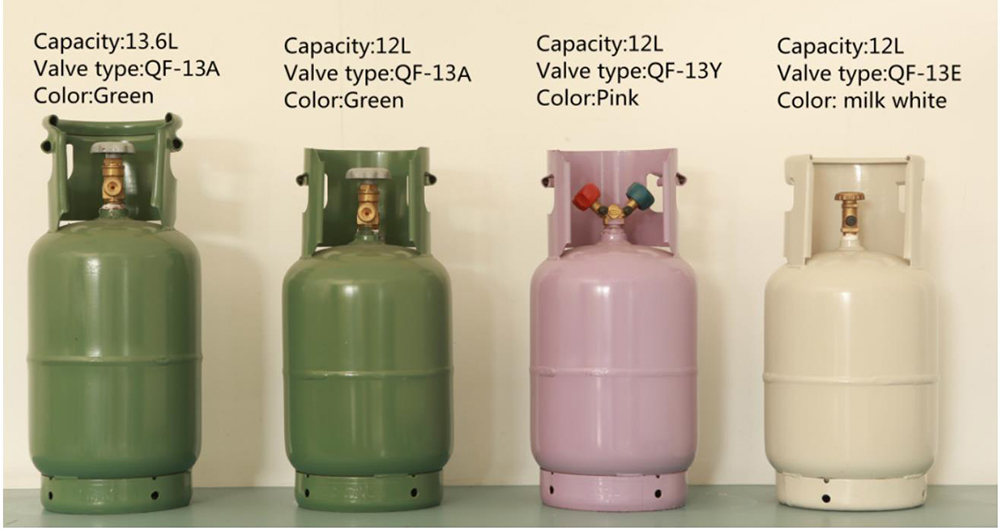

Refillable steel cylinder 10kg/cylinder ; 760kgs/ton cylinder

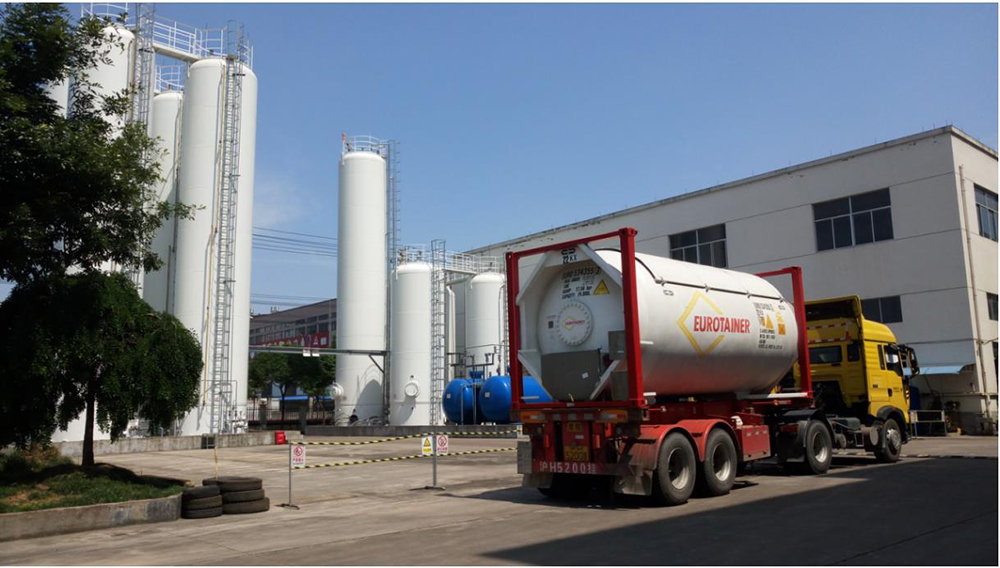

iso tank 16,000-18,000kgs/iso tank

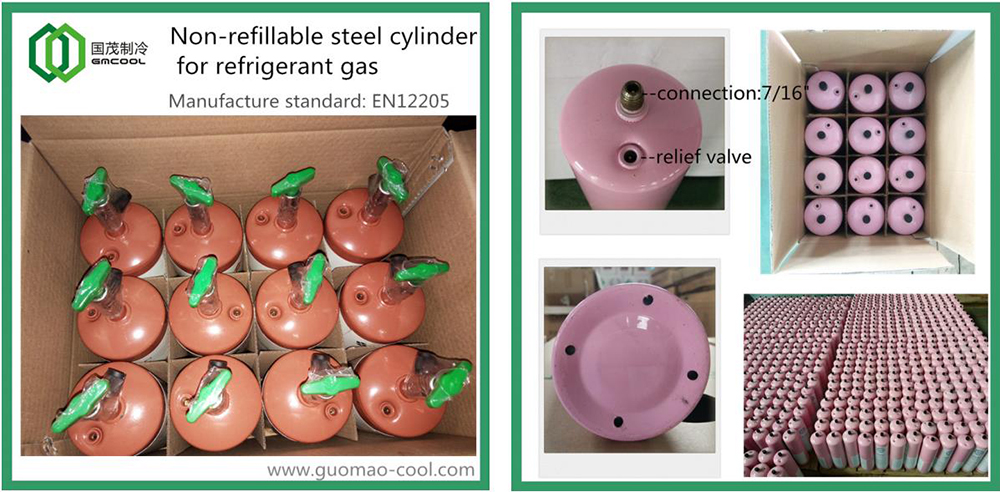

1L Disposable steel cylinder N.W.800g/cylinder
