Refrigerants R407C
Refrigerants R407C
Refrigerants R407C
Refrigerants
R407C
Specifications99.9% MIN.
Grade StandardIndustrial   Grade
Transport Package11.3kg   disposable steel cylinder, outer carton boxes
H.S.CODE3824780020
Min. Order800cylinders
Port of LoadingNingbo or   Shanghai, China
Trade MarkGM COOL
OriginZhejiang,   Jiangsu
CertificateDOT-39, REACH,   CE,KGS
Production Capacity300,000pcs per   year
IMO UN NUMBER3340/2.2


R407C refrigerant

R407C is a non-ODP HFC refrigerant replacement for R-22 in positive displacement systems such as new or existing residential and commercial air-conditioners and heat pumps. R407C offers similar performance to R-22 and can be used to retrofit existing R-22 air-conditioning systems.

Replaces
R-22
Applications
Positive displacement equipment:
- new or existing residential and commercial air-conditioners
- new or existing residential and commercial heat pumps
Existing medium-temperature applications




Benefits
Similar to R-22 in capacity and energy efficiency. It is the best retrofit replacement for R22.

Physical properties:

ComponentChemical nameMolecular formulaWeight%
HFC-32Difluoromethane   CH2F223
HFC-125Pentafluoroethane   CHF2CF325
HFC-134a1,1,1,2-Tetrafluorethane   CH2FCF352
Molecular weight   86.2
Boiling point   -43.7 ℃
Critical temperature   87.3℃
Critical pressure   4819kPa
Odor   Slight ethereal
Form   Liquefied gas
Color   Clear, colorless
Heat of vaporization at boiling point   249.73KJ/kg
Vapor Pressure at 25 ℃   1287.01kPa
Vapor Density at 25 ℃ (Air = 1)   4.585
Liquid Density at 25 ℃   1.153g/cm3
Ozone Depletion Potential(ODP)   0
Global Warming Potential(GWP) 100yr   1700
ASHARE Safety Group Classification   A1/A1
Flammability at 1 atm. and 18 ℃   Non-flammable


Lubricant Recommendation
POE

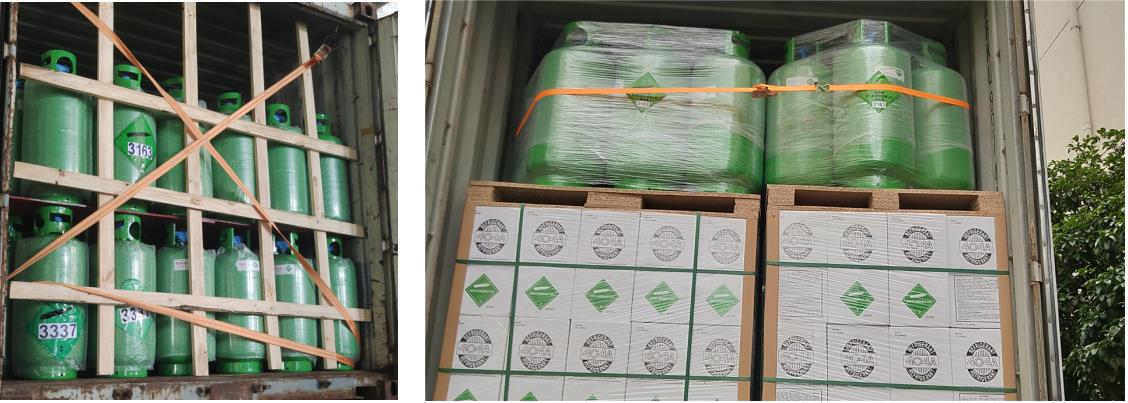

Packing:

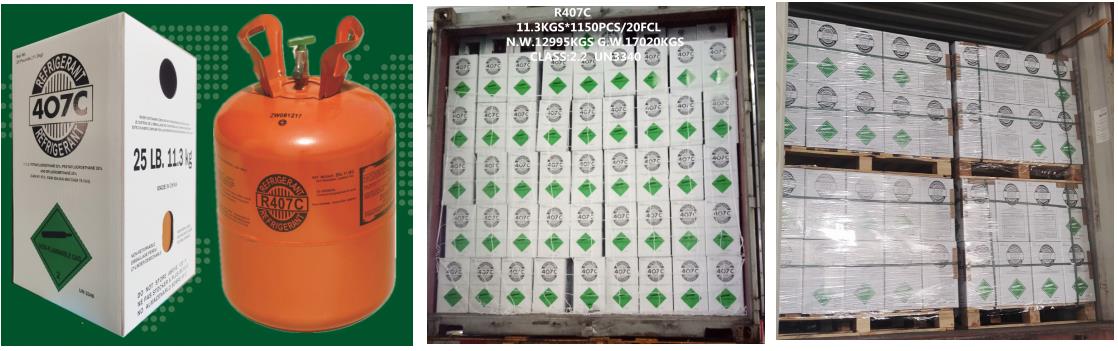

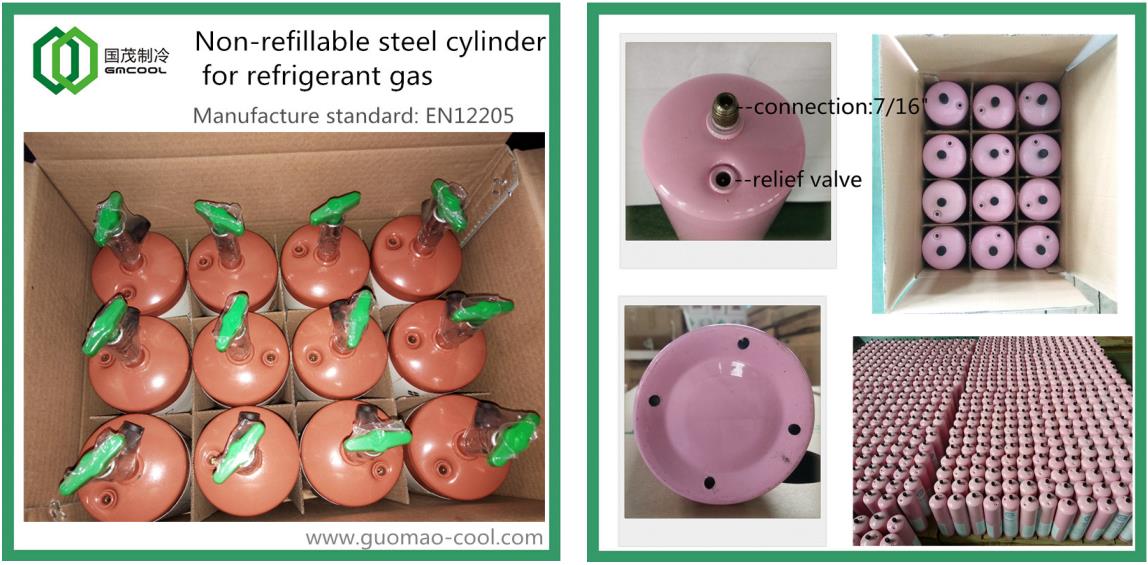

Disposable cylinder 25lb(11.3kg)/cylinder

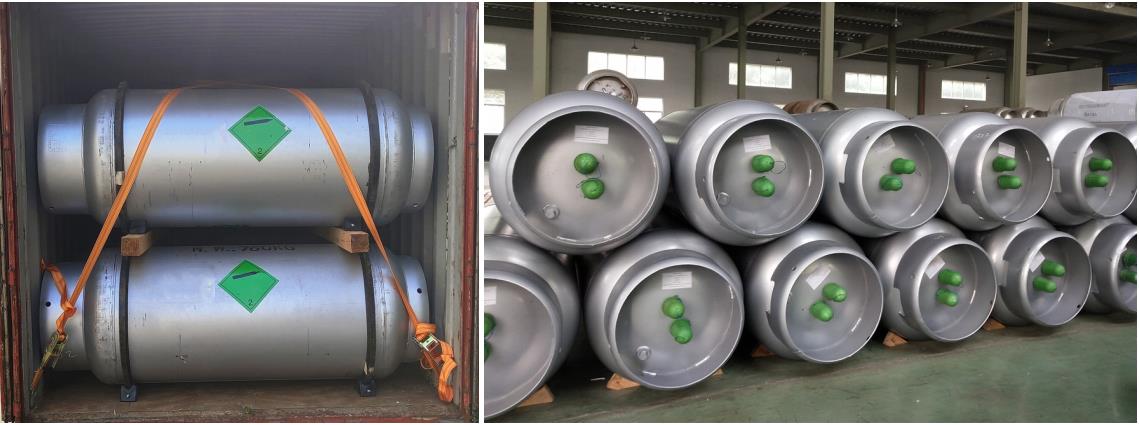

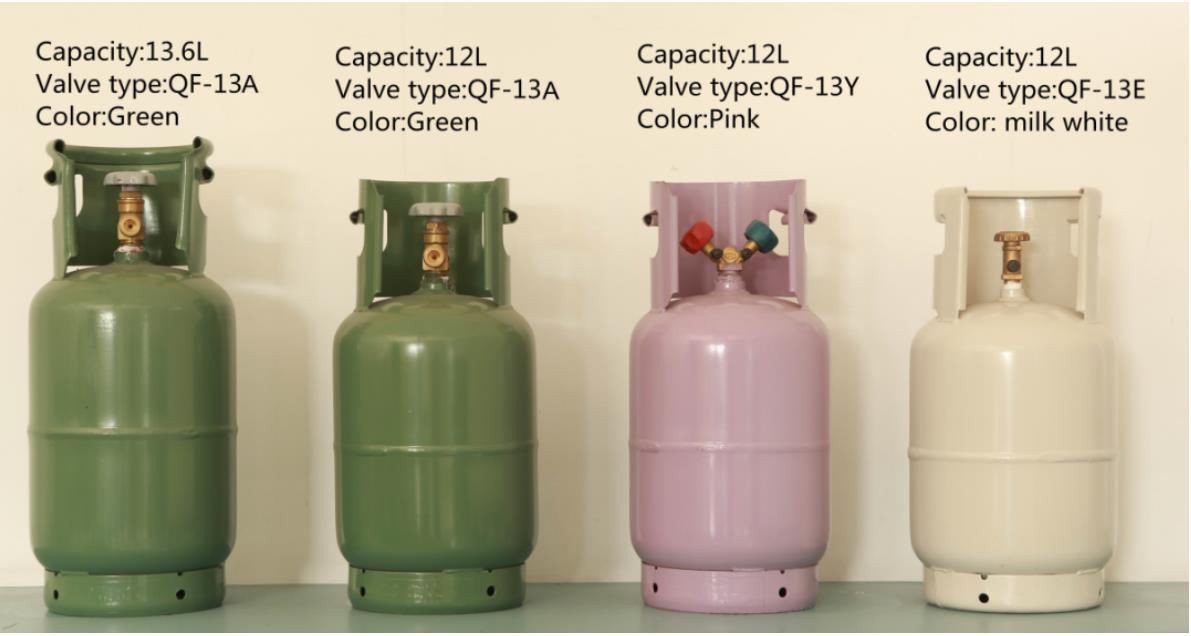

Refillable cylinder 9kg/cylinder; 870kg/ton cylinder
Iso tank 16,000-18,000kg/iso tank
