Refrigerants R22
Refrigerants R22
Refrigerants R22
Refrigerants R22
Refrigerants
R22
Specifications99.8% MIN.
Grade StandardIndustrial   Grade
Transport Package13.6kg   disposable steel cylinder, outer carton boxes
H.S.CODE2903710000
Min. Order800cylinders
Port of LoadingNingbo or   Shanghai ,China
Trade MarkGM COOL
OriginZhejiang
CertificateDOT-39,KGS, CE
Production Capacity100,000pcs per   year
IMO UN No./Class1018/2.2



Applications
Residential and Commercial A/C
Medium- and low-temperature commercial refrigeration, such as
food service
supermarket display cases
food storage and processing
ice machines
some transport

Physical properties:
ComponentChemical nameMolecular formulaWeight%
HCFC-22Chlorodifluoromethane   CHClF2100
Molecular weight   86.47
Boiling point   -40.8 ℃
Critical temperature   96.24℃
Critical pressure   4980kPa
Odor   Slight ethereal
Form   Liquefied gas
Color   Clear, colorless
Heat of vaporization at boiling point   233KJ/kg
Vapor Pressure at 25 ℃   1044kPa
Vapor Density at 25 ℃ (Air = 1)   3.03
Liquid Density at 25 ℃   1.194 g/cm3
Ozone Depletion Potential(ODP)   0.034
Global Warming Potential(GWP) 100yr   1700
ASHARE Safety Group Classification   A1/A1
Flammability at 1 atm. and 18 ℃   Non-flammable


Lubricant Recommendation

AB or MO

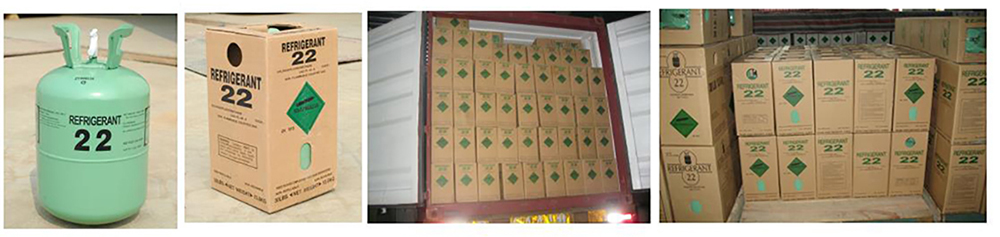

Packing:
Iron cans: 800gram/can,

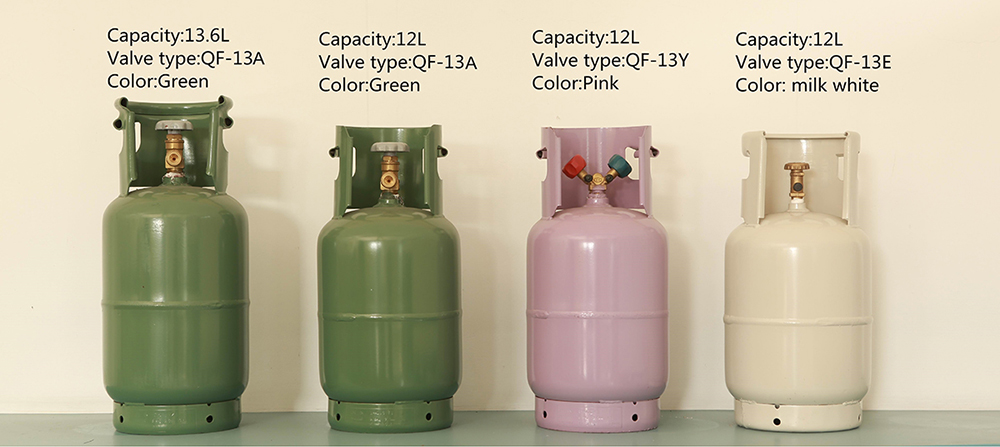

Disposable steel cylinders: 15lb.(6.8kg)/cylinder, 30lb.(13.6kg)/cylinder, 50lb.(22.7kg)/cylinder ,

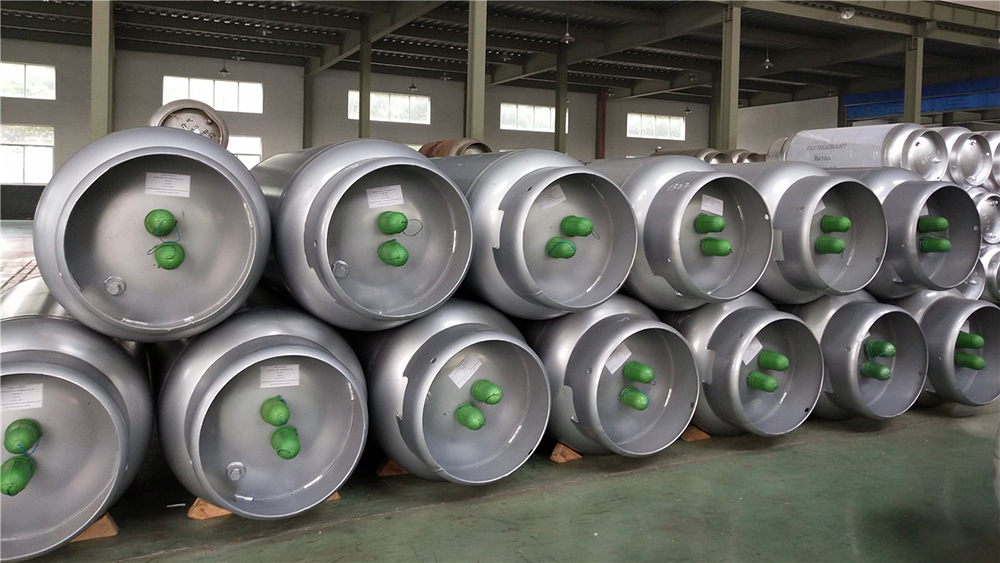

Refillable steel cylinders: 13.6kg/cylinder, 100kg/cylinder, 400kg/cylinder , 950kgs/ton cylinder,

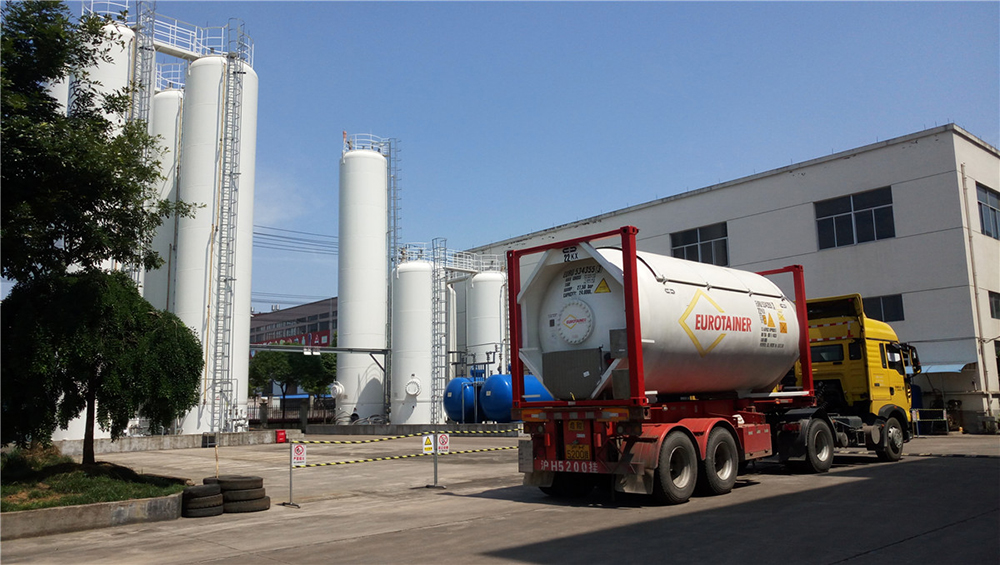

Iso tanks: 18,000kgs/ tank
